V series adopt evolutional 5D optic tech (Dual reflector cup + projector lens) be used for more effective light to faraway and surround areas without foggy light/dark zone.
Personalized cool show RGB light & strobe settings are controlled via Bluetooth APP on Android or iPhone
If there is a problem that Bluetooth cannot be connected or the rgb coloring cannot be changed, please confirm whether you have downloaded the LATEST APP.
(The latest QR code can be found in the pictures and videos)
Specifications :
LED Type: 2525 chips
Size/LED Power/Dimension(inch):
| 22" Straight | 120W-40pcs*3W 25*4.8*3.5(with bracket) 22*3*3.5(without bracket) |
12000LM |
| 22" Curved | 120W-40pcs*3W; 25*4.8*3.5(with bracket) 22*3*3.5(without bracket) |
12000LM |
| 32" Curved | 180W-60pcs*3W; 35*4.8*3.5(with bracket) 32*3*3.5(without bracket) |
18000LM |
| 42" Straight | 240W-80pcs*3W; 46*4.8*3.5(with bracket) 42*3*3.5(without bracket) |
24000LM |
| 42" Curved | 240W-80pcs*3W; 46*4.8*3.5(with bracket) 42*3*3.5(without bracket) |
24000LM |
Beam Type: Spot(30 degree) & Flood(60 degree) Combo
Color temperature: 6500K Cool White with RGB multicolor
Operating Voltage: 9-32V
Material: Black Diecast aluminum alloy housing
Mounting Bracket: Diecast aluminum alloy
Waterproof rate: IP67
Working Temperature:-40~85 degrees Celsius
Lifespan: 50,000 Hours
Features :
- Comes with a control box harness kit with switch and a wiring harness kit. Durable wiring meets your needs for mounting your lights anywhere on the vehicles.
- Black extruded aluminum profile, high transmission PC lens, 360 angle rotating metal side brackets;
- IP67 rated waterproof & dustproof, durable enough to withstand any harsh environments, about 50,000 hours lifetime
Package Included :

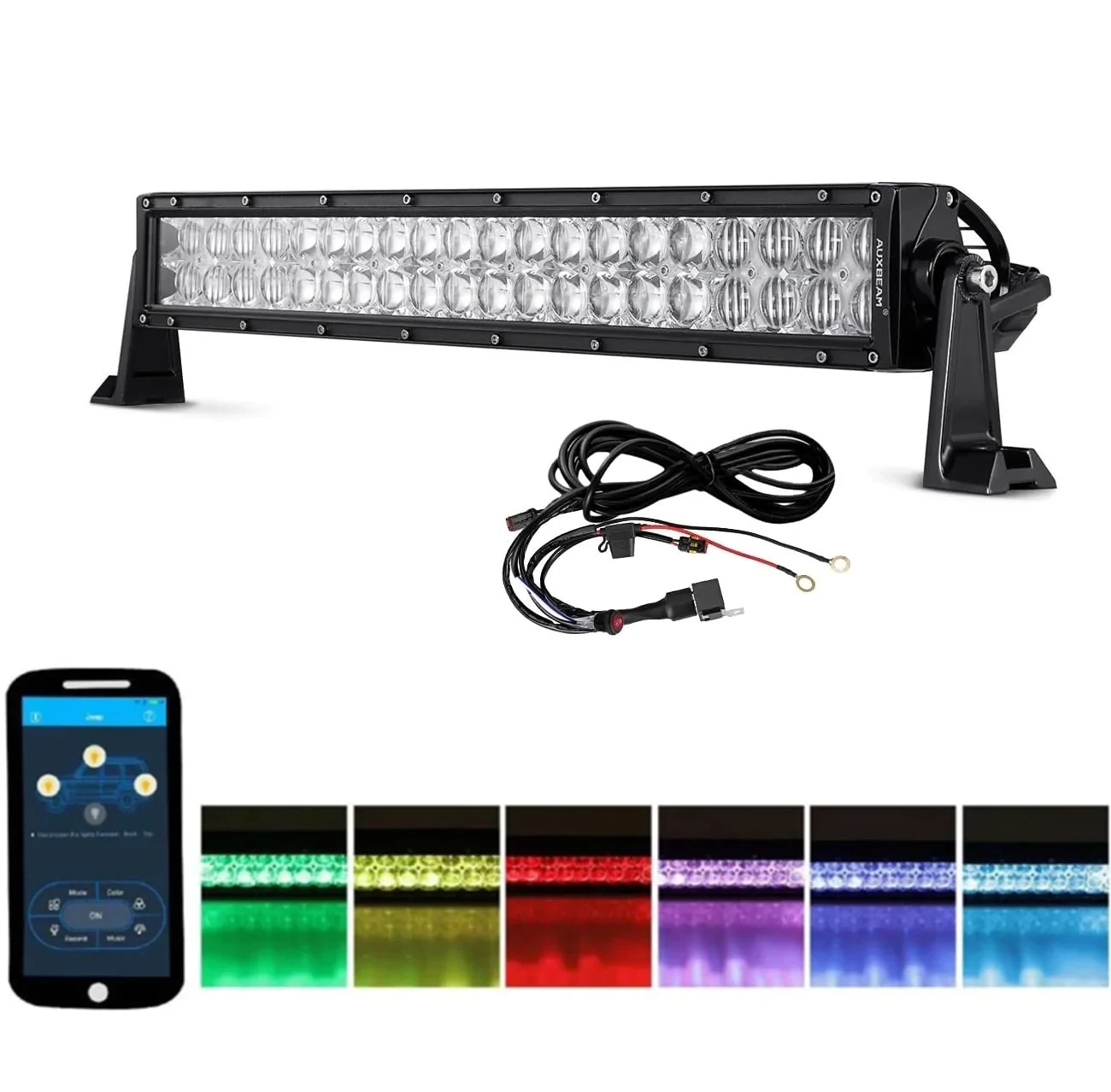

RGB LED light bar *1
Side brackets(rubber pads included) *2
RGB control box harness kit with switch *1
Wiring harness kit with relay and fuse *1
Necessary mounting hardware like bolts, washers, nuts included
