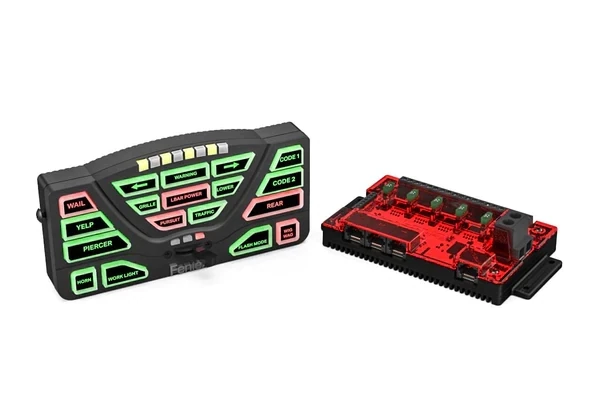

All in one controller

Input Voltage: 11-16 VDC

18, back-lit, push-feel buttons

4 position programmable slide switch

Includes U-shaped aluminum bracket

Bluetooth App pairing password: 1111

Integrated traffic advisor with 8 outputs

Implements rugged, solid state relays

8 positive (+) or ground (-) activated inputs

17 programmable outputs: 10 Amps (+)

1 programmable outputs: 3 Amps (-)

2 programmable, 4 output groups: 20 Amps

1 programmable 4 output continuous current: 30 Amps

Integrated 2 channel Wigwag/LED flasher rated at 3 Amps

Includes wire connectors for easy installation

USB port provides easy access for programming

Includes 50 standard function labels per button

Dimensions of power supply: 6" L x 4" W x 1.5" H

Dimensions of controller: 6.8" L x 3.5" W x 1.3" H

Back-lit LED's can be adjusted for day or night time use

Compatible with all other lighting and vehicle equipment

Programmed using our Feniex designed Windows application

Ability to program buttons as: On/Off, Momentary, Timer

Bluetooth add on allows for phone or tablet wireless control

Color coded back lit LED's (Red indicator for on/Green for off)

Includes 15 ft of RJ-45 cable to link controller to power supply

What's in the Box:

• (1) 4200 Controller
• (1) 4200 Relay
• (1) USB Cable
• (2) RJ45 Cables
• (1) U-Shaped Bracket
• Label Stickers

Mounting Options:

• Included U-Shaped bracket
• Available faceplates with Havis, Jotto, Gamber Johnson, and Troy

Tech Specs:

• All in one controller with universal compatibility
• 18, back-lit, push-feel buttons with the ability to program buttons as on/off, momentary, and timer
• Three position slide switch for light group activation
• Integrated traffic controller with eight outputs and integrated wigwag
• USB port provides easy access for programming with the included software
• Includes 50 standard function labels per button
• Includes 15 ft of RJ-45 cable to link controller to the relay
• Relay Dimensions: 6" L x 4" W x 1.5" H
• Keypad Controller Dimensions: 6.8" L x 3.5" W x 1.3" H
• 20 programmable 10 amp outputs
• Programmable ignition activation, day mode, and night mode
• Eight programmable inputs
• SAE J1849 certified

FAQs:

Is the Feniex 4200 Controller compatible with my lights that are another brand?

Yes, the 4200 is compatible with almost every light and siren brand.

Does the 4200 Controller come with labeling stickers?

Yes, the controller comes with labeling stickers for all of the buttons on the keypad.

Is there an easy way to turn on all of my lights or a group of lights with the 4200 Controller?

Yes, with the three position slide switch, you can program a group of lights or all of your lights for each position.
