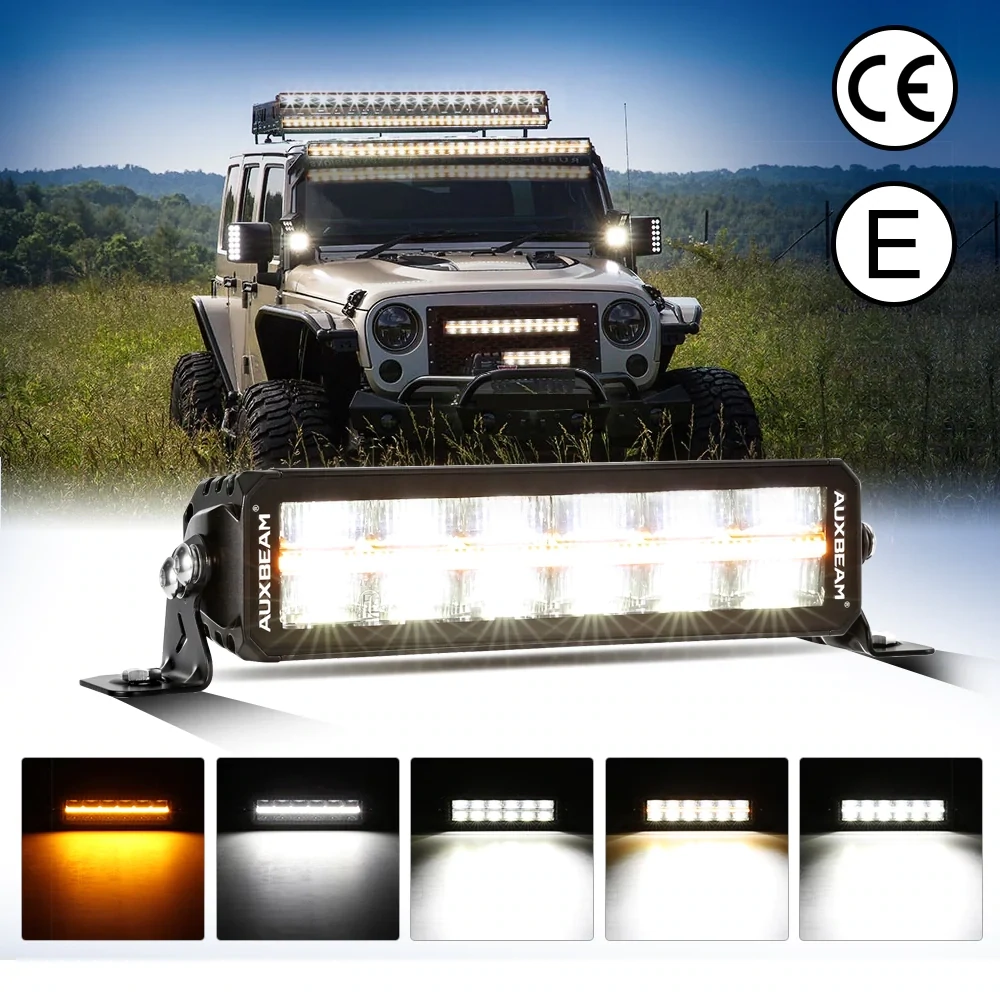

SP-DRL SERIES PRODUCTS This Product Is Highlighted

Size	Lumen	Beam Distance	LED QTY
12 Inch-68W Single Row	7440LM	1LUX@442M	HFL3*6Pcs+3030*21Pcs White DRL+3030*21Pcs Amber DRL
22 Inch-114W Single Row	12440LM	1LUX@496M	HFL3*10Pcs+3030*36Pcs White DRL+3030*36Pcs Amber DRL
32 Inch-183W Single Row	19920LM	1LUX@578M	HFL3*16Pcs+3030*58Pcs White DRL+3030*58Pcs Amber DRL
12 Inch-70W Dual Row	8160LM	1LUX@468M	P8*12Pcs+3030*24Pcs White DRL+3030*24Pcs Amber DRL
22 Inch-139W Dual Row	16320LM	1LUX@532M	P8*24Pcs+3030*48Pcs White DRL+3030*48Pcs Amber DRL
32 Inch-209W Dual Row	24480LM	1LUX@568M	P8*36Pcs+3030*72Pcs White DRL+3030*72Pcs Amber DRL
42 Inch-278W Dual Row	32640LM	1LUX@612M	P8*48Pcs+3030*96Pcs White DRL+3030*96Pcs Amber DRL

Features:

Ultra Brightness: Advanced P8 led chips, total 70 watts, with lighting performance 8160LM, 1Lux@468Meters. Features a trusted ultra-bright, high-intensity, stable light output, providing excellent visibility in the dark night, ensuring a safer and more enjoyable off-road experience.
Perfect Driving Beam w/DRL: This kind of light beam patterns is specifically meant for driving .It provides an extremely bright, focused light beam pattern straight ahead to a great distance. It also designed with DRL for extra safety for daytime ride.
IP69K Waterproof: The highest level of dust and water resistance, powerful to withstand any harsh environments and weather conditions. Whether you're driving through a rainstorm, crossing a river, or simply washing your car, you can trust this light bar to function flawlessly. Heavy duty 6063 die-casting aluminum housing efficiently accelerates heat dissipation and maintains a safe temperature.

EMC/EMI Protection: Light Bar are built-in EMC that meets CE standards, limiting the generation of EMC/EMI interference. Provides better protection for both internal electronic components in lighting and also external objects like a radio receiver.

Specifications:

Voltage: 10-30V（Harness relay is rated for 12V）
Current: Max 12A
Beam Pattern: Driving Beam
Beam Angle: 80 degree
Lens Color: Clear
LED Color: White Driving+White DRL/Position+Amber DRL
Color Temperature: 6500K Driving+6500K DRL/Position+3000K Amber DRL
LED Source: P8+3030
Operating Temperature: -40℃ to 85℃ (-40℉ to 185℉)
Housing Material: Aluminum
Lens Material: PC
Bracket Material: Stainless steel
Bracket Type: Side Bracket and Bottom Bracket
Waterproof: IP69K
Connection: 4PIN DT to 3PIN DT Plug Adapter+Wiring Harness
Adapter Length: 0.2M
DRL Length: Yellow Cord 1.5M
Harness Length : 3M
Wiring Harness: "Black cable：(- Negative),Red cable：(+ Positive)"
Connection: Wiring Harness to Battery and White DRL to DRL
Lifespan: 50000hs+
EMC: YES
CE Certification: YES
E-approved: YES

This Package Includes:

1 x LED Light Bar with 4PIN Plug
1 x 4PIN DT to 3PIN DT Plug Adapter with DRL Extension Cord
1 x Side & Bottom Bracket with Screw
1 x Wiring Harness Kit（12V）

Auxbeam products may be drop shipped for faster availability. Most orders ship in normal shipping times 1-2 business days.
